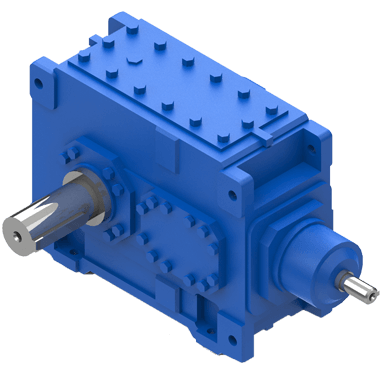

B Series Bevel-Helical Gear Industrial Gearbox

Vatidel spiral Bevel Helical gear gearbox unit portfolio is by far the most comprehensive range of industrial gear units in the market. It includes a multifaceted range of universal gear units, application-specific gear units and customer-specific solutions.

Today, our standardized industrial gear units are especially important due to their high level of availability, their quality and their attractive price-performance ratio. Our selection of universal gear unit designs is perfectly supplemented by a wide range of standard options such as motor connection flange, backstops and taconite seals.  The gear units supporting horizontal and vertical mounting positions, they can also be installed on the front(base- or shaft-mounted gear units).

The standardized connections offer flexibility in terms of mounting options, such as those required for temperature control or gearbox lubrication.

Back INQUIRY
Go TO Top

Features

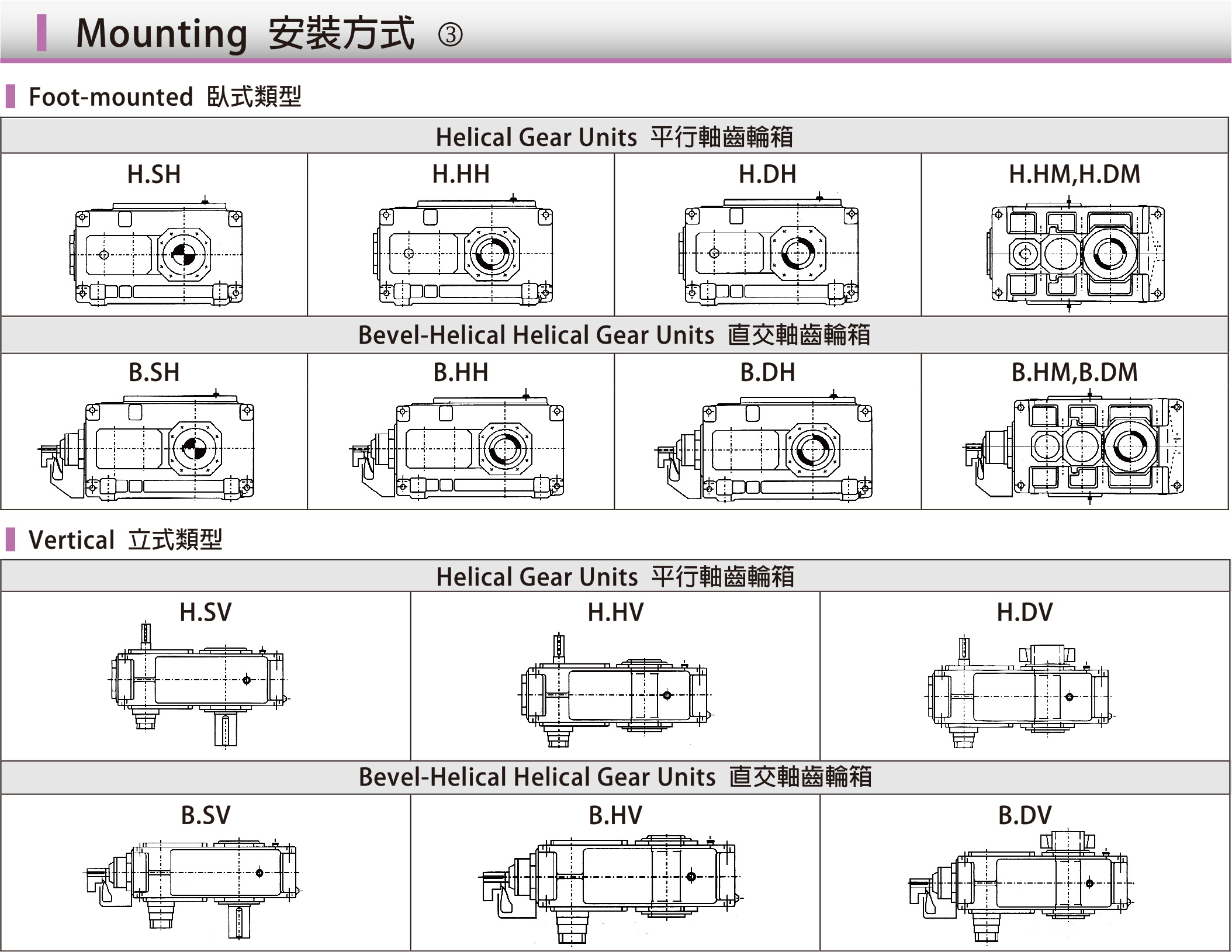

-Mounting

‧Gearbox can be supplied for either horizontal or vertical installation.

‧Other arrangements are possible on request.

‧Input Motor flange or multiple output shafts can be customize.

-Low Noise

‧Precision Gears machined, carburized and precision tooth grinding/skiving to ensure perfect tooth profile.

‧Housing design to reduce resonance and noise absorbing

‧Gears with large contact area design.

-Low Thermal

‧Housing design to increase thermal conduction areas

‧High efficiency ventilation fans design (optional)

‧Oil lubrication pump or force lubrication system (optional) for efficiency reducing heat to increase gearbox service life.



Go TO Top

Technical

Information








Go TO Top

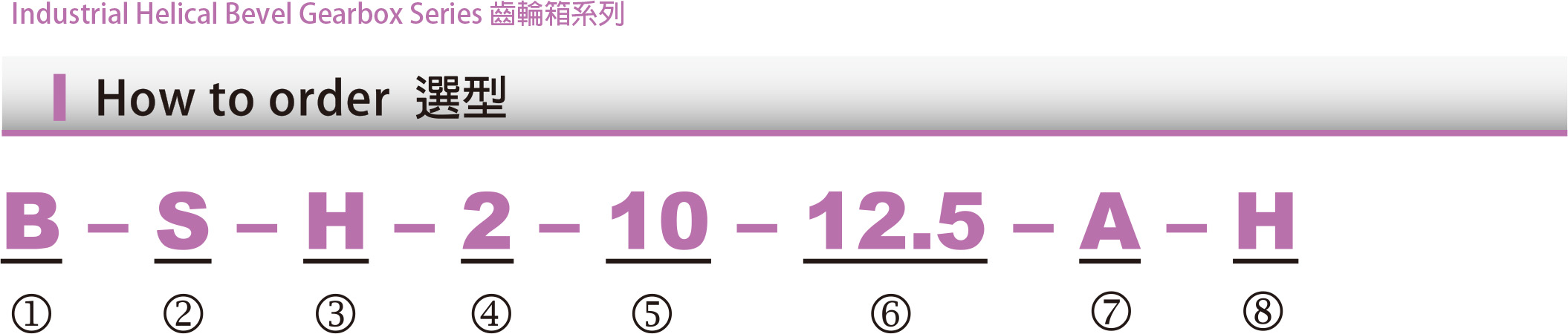

Designation

1

Model

H: Helical

B: Bevel-helical



2

Output Shaft

S: Solid Shaft

H: Hollow Shaft

D: Hollow Shaft with Shrink Disk

K: Spline Hollow Shaft

F: Flanged Shaft

3

Mounting

H: Horizontal

V: Vertical

4

Stages

1, 2, 3, 4

5

Frame Size

Size 1~22

6

Nominal ratio

iN: = 12.5~450

7

Design for assemble

A,B,C,D,… Refer to details catalog.

8

Direction of rotation of input shaft

Viewing on input shaft:

CW:Clockwse

CCW: Counter clockwise





Go TO Top

Applications

  • Conveyor drives
  • Bucket conveyor drives
  • Agitator drives
  • Hoist drives
  • Running gear drives
  • Paper machine drives
  • Dryer drives
  • Water screw drives
  • Crushers
