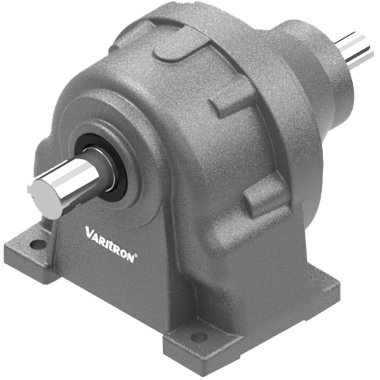

GHD Helical Geared Speed Reducer Foot Mount

Vatidel GHD Helical Gear Inline speed reducers with shaft input. Foot Mount Design with High Quality alloy steel gears machined and carbonized with precision tooth profile.

Go TO Top

Technical

Information



Go TO Top

Designation

j

Model型式

GH:Foot Mount Helical Gearmotor

GHM: Foot Mount Helical Gear Reducer with Adaptor

GHD:Foot Mount Helical Gear Reducer with Input Shaft

GV:Flange Mount Helical Gearmotor

GVM:Flange Mount Helical Gear Reducer with Adaptor

GVD:Flange Mount Helical Gear Reducer with Input Shaft

GVV:Helical Gear Motor Agitator

腳座型齒輪減速馬達

腳座直結型齒輪減速機

腳座入力軸型齒輪減速機

法蘭型齒輪減速馬達

法蘭直結型齒輪減速機

法蘭入力軸型齒輪減速機

齒輪攪拌機

k

Frame Size型號

18,22,28,32,40,50Refer to each model.請參考各形式頁面

l

Motor Power馬力 (W)

75,100,200,400,550,750,1500,2200,3700

m

Ratio減速比

Refer toPerformance Chart page 128~129. 請參考性能表第128~129

n

Suffix特殊

(Option選配)

Empty if non無記號:無特殊

B:With Brake剎車

BC: With Brake and Clutch剎車離合器

DC:DC motor直流馬達

F: External Fan 獨立風扇

W:Outdoor屋外型

AVM: Speed Variator 無段變速機

AV:Inverter Motor 變頻馬達

EP:IE3 Premium Efficiency超高效率馬達

S:Special 特殊

o

Voltage電壓

A: 1-Phase單相 110/220V, 50/60Hz

S1:3-Phase三相220/380V, 50/60Hz

S23-Phase三相 200-220/400-440V, 50/60Hz              S4Others其他

S3: 3-Phase三相 230-240/460-480V, 50/60Hz

‡

Terminal Box Direction

電器盒方向

T1 (Standard標準)T2, T3, T4







Go TO Top

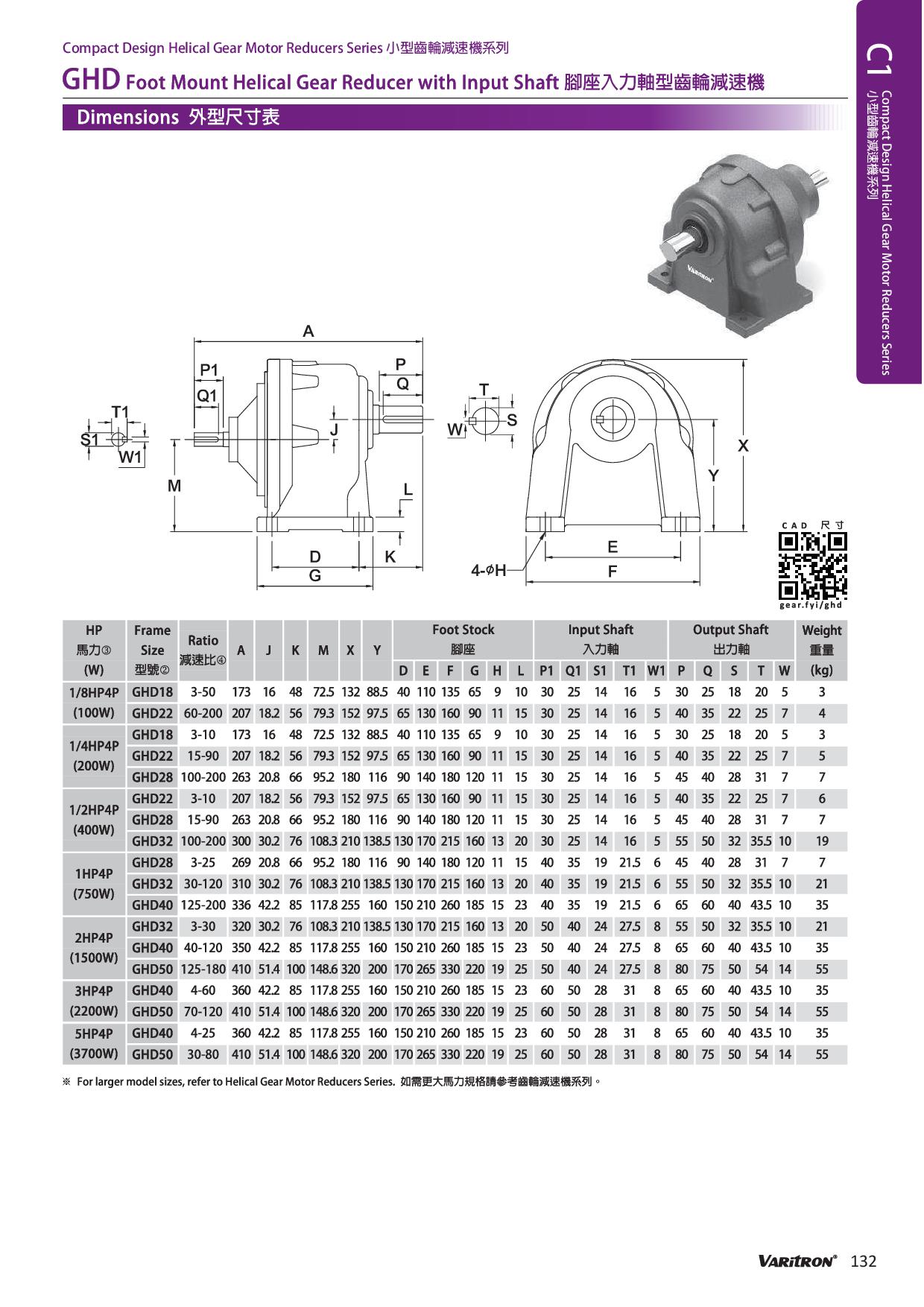

Dimensions

Go TO Top

Applications
