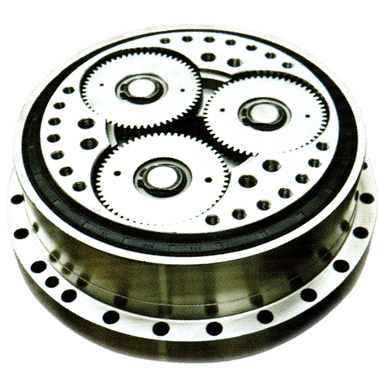

The RV-E series precision cycloidal gear reducer provides high-end performance in a very compact and highly rigid component type configuration. The gearbox incorporates rolling contact elements to provide high efficiency and long life, integrated angular bearings to support external loads and a 2-stage reduction design to reduce vibration and inertia while increasing ratio capabilities.
Features
●RELIABILITY, LONG LIFETIME, PRECISION
●Less than 3 arc-min Backlash (High precision 1 arc-min available)
●Very compact with high torsional rigidity
●In-line version for greater design and space saving flexibility
●High Ratio availability up to 1/212, without increasing gearbox size
●Torque capacity up to 5X rated torque (E-Stop)
●100% Continuous Contact of the cycloidal pin & gear teeth design provides high shock load capacity and very low backlash since forces are distributed throughout the reducer
●2-Stage Reduction Structure reduces vibration due to the lower speed rotation of the two cycloidal gears, special input shaft design lowers inertia
