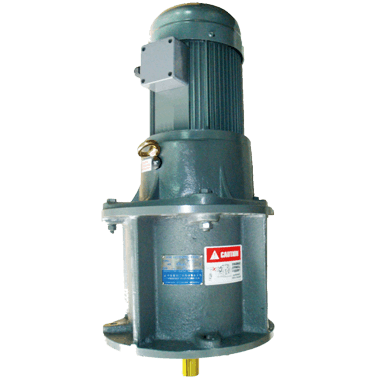

GVV series agitator uses high efficiency helical gear reducers which require no maintenance, low noise and high efficiency. The output shaft extends to its foundations which increase its supportive for the agitator shafts to have long service life and little wear out. Optional Speed Variator or inverter for speed adjusting or outdoor motor, explosion proof motor can be assign.
Features
▌Fully enclosed casing
▌Dust and spill prove
▌Conventional
▌Easy installing
Designation
|
j |
Model型式 |
HHM:Portable Mixer LCV: Submerge Mixer GVV:Compact Design Helical Gear Agitator CS:Single Layer Anchor Type liquid Agitator CSS:Double Layer Anchor Type liquid Agitator HMB:Liftable High Speed Mixer SCB: Bridge Type High Speed Emulsify Mixer SC: Flange Type High Speed Emulsify Mixer |
可搬式攪拌機 水中攪拌機 固定型齒輪攪拌機 單層固定型攪拌機 雙層固定型攪拌機 升降高速攪拌機 架橋型高速乳化機 法蘭型高速乳化機 |
||
|
k |
Frame Size 型號 |
Refer to each model 參考各型號 |
|||
|
l |
Suffix特殊 (Option選配) |
HUD: Hand Adjust Stand手動升降機架 AUD: Electric Adjust Stand電動升降機架 SA: Speed Adjust Control調速器 T3: T3 Explosion Proof T3防爆 T4: T4 Explosion Proof T4防爆 TL: Torque Limit扭力限制器 |
VM: Cycloidal Drive賽驅樂減速機 WG: Worm Gear Reducer 蝸輪減速機 ADV: Helical Gear Reducer齒輪減速機 VF: Planetary 遊星式減速機 AVM: Variator 變速機 |
||
|
m |
Shaft Seal 軸封 |
L1,L2,G1,G2,… Refer to Page 235參考第235頁 |
|||
|
n |
Voltage電壓 |
B1:220/380V 50Hz B2:220/380V 60Hz |
C1: 220/440V 50Hz C2:220/440V 60Hz D: Others 其他 |
||
|
o |
Impellers攪拌翼 |
1,2,3,4,… Refer to Page 236參考第236頁 |
|||
|
|
Install Method 設置方式 |
T1: Center 中心插浸 T2: Eccentric 偏心插浸 |
T3: Title Eccentric 偏心斜插 B1: Tank Side 桶槽側 |
||

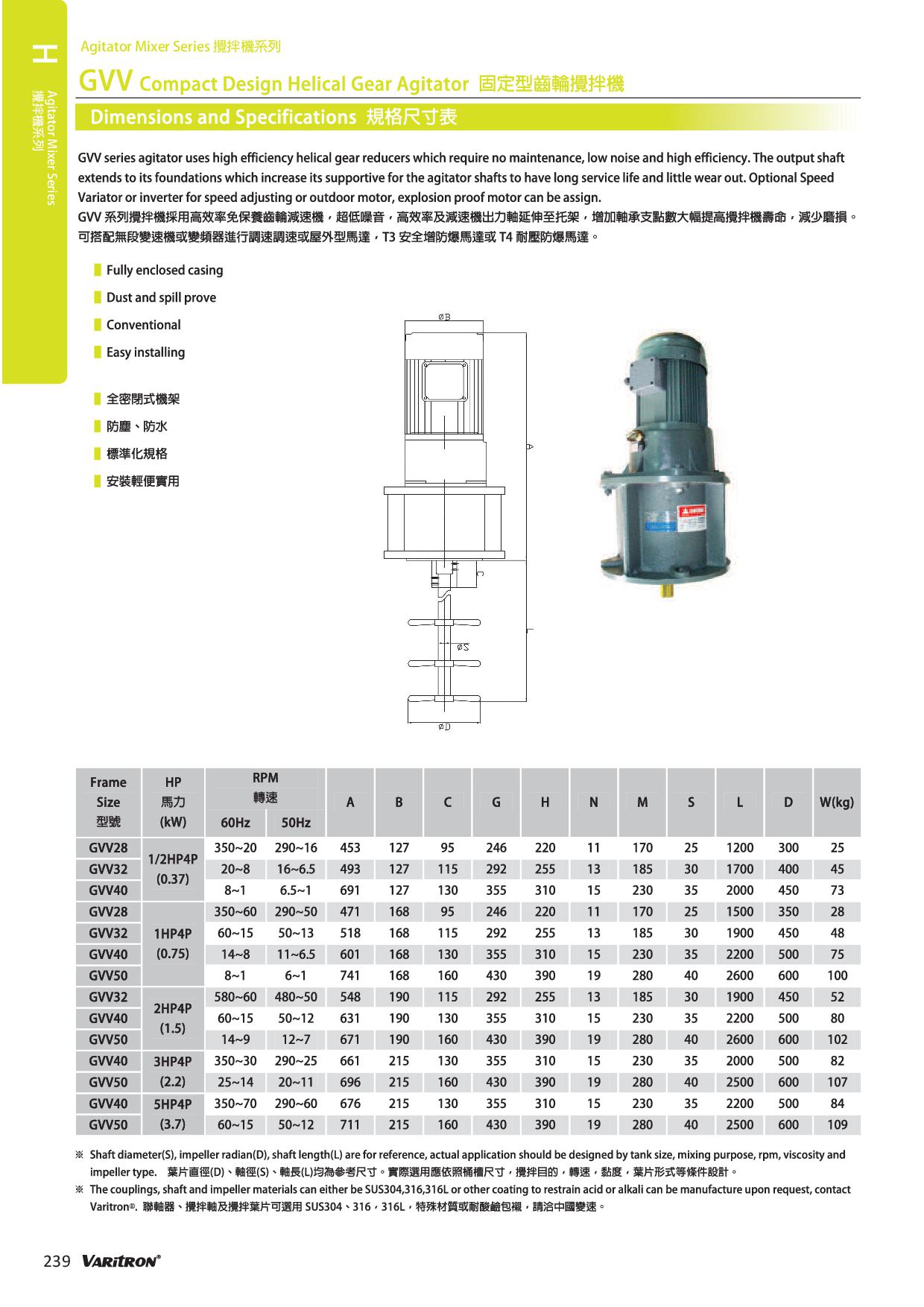

Dimensions
