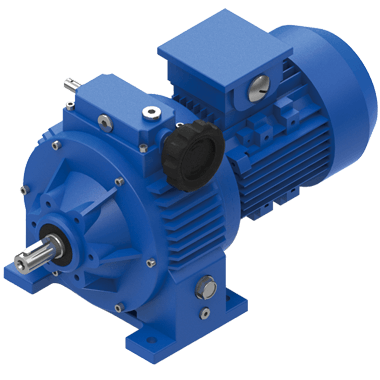

Varitron TF Speed Variator is a integrate design with high efficiency, compact size, long life span and simple structure invention. It is the most highly used speed variator in modern industrial. Its torque transmission is by using fixed-star wheel friction, where stability, abrasion resistance and toughness are the best in variator device.
Technical
Information
▌EU type 歐規TF. TXF. TK. TKF
Power 馬力 Hp(kW) |
Frame Size 型號 |
Ratio 變速比 |
Speed Range 變速範圍 |
Revolution Speed 出力軸回轉速 rpm |
Output Torque 出力軸轉矩kg-m |
Output Shaft Radial Load 出力軸徑向 負荷kg |
Output Shaft Axial Load 出力軸軸向 負荷kg |
IEC Input Adaptor IEC入力法蘭 |
|||
Foot Mount 腳座型 |
Flange Mount 法蘭型 |
50Hz |
60Hz |
50Hz |
60Hz |
||||||
1/4 (0.18) |
TF002 |
TXF002 |
1:5 |
1/8.2~1/1.6 |
170~880 |
210-1050 |
0.3~0.15 |
0.25~0.13 |
40 |
30 |
63M-B5 |
1/2 (0.37) |
TF005 |
TXF005 |
1:5 |
1/7~1/1.4 |
200~1000 |
240~1200 |
0.6~0.3 |
0.5~0.25 |
80 |
50 |
71M-B5 |
1 (0.75) |
TF010 |
TXF010 |
1:5 |
1/7~1/1.4 |
200~1000 |
240~1200 |
1.2~0.6 |
1~0.5 |
100 |
106 |
80M-B5 |
2 (1.5) |
TK020 |
TKF020 |
1:5 |
1/7~1/1.4 |
200~1000 |
240~1200 |
2.4~1.2 |
2~1 |
130 |
130 |
90L-B5 |
3 (2.2) |
TK030 |
TKF030 |
1:5 |
1/7~1/1.4 |
200~1000 |
240~1200 |
3.6~1.8 |
3~1.5 |
190 |
170 |
100L-B5 |
5 (3.7) |
TK050 |
TKF050 |
1:5 |
1/7~1/1.4 |
200~1000 |
240~1200 |
6~3 |
5~2.5 |
190 |
170 |
112M-B5 |
7.5 (5.5) |
TK100 |
TKF100 |
1:5 |
1/7~1/1.4 |
200~1000 |
240~1200 |
9~4.5 |
7.5~3.8 |
220 |
200 |
132S-B5 |
10 (7.5) |
TK100 |
TKF100 |
1:5 |
1/7~1/1.4 |
200~1000 |
240~1200 |
12~6 |
10~5 |
220 |
200 |
132M-B5 |

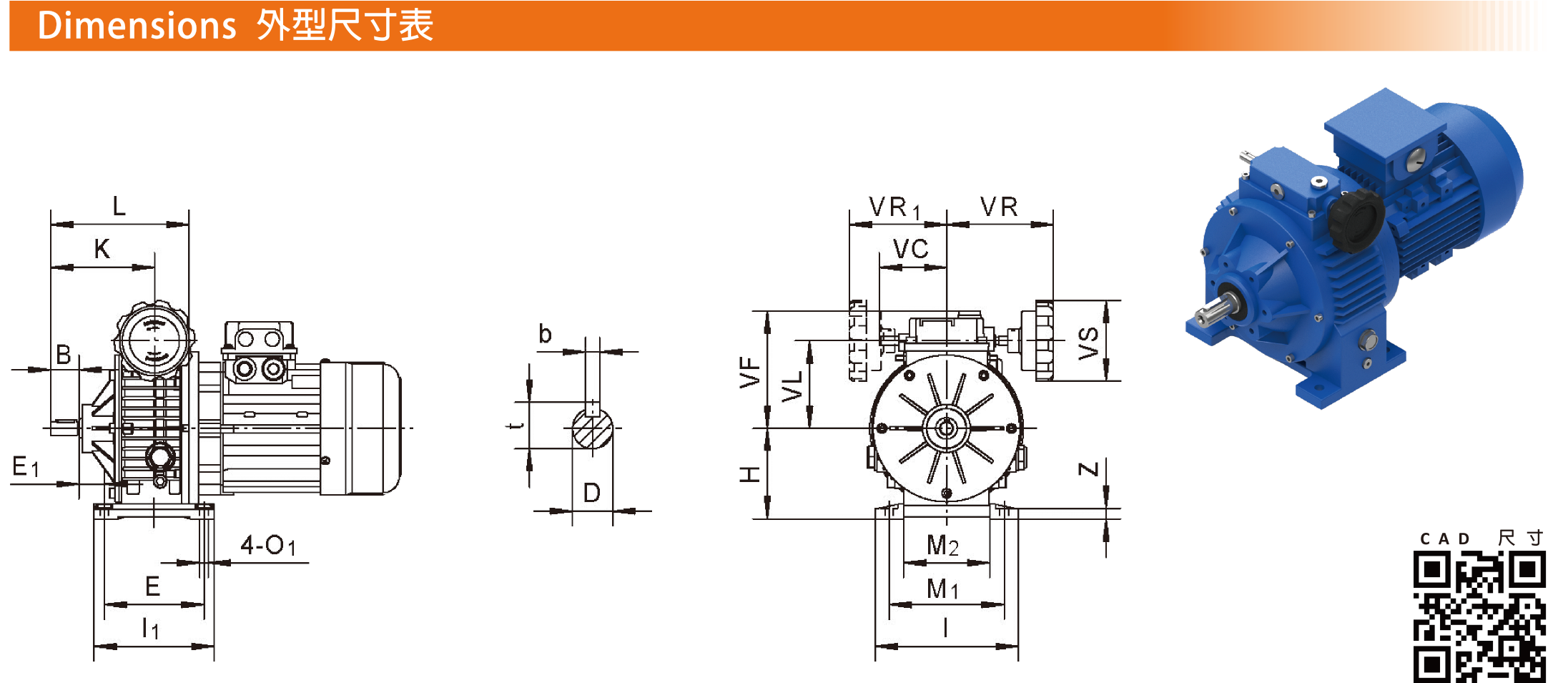

Dimensions
Frame Size 型號 |
B |
D(j6) |
E |
E1 |
H |
I |
I1 |
K |
L |
M1 |
M2 |
O1 |
VF |
VL |
VR |
VR1 |
b |
t |
Z |
TF002 |
23 |
11 |
105 |
80 |
80 |
145 |
120 |
87.5 |
135.5 |
110 |
71 |
9 |
111 |
78 |
110 |
110 |
4 |
12.5 |
10 |
TF005 |
30 |
14 |
104 |
93 |
93 |
149 |
125 |
104 |
140 |
120 |
96 |
9 |
123 |
90 |
110 |
110 |
5 |
16 |
10 |
TF010 |
40 |
19 |
125 |
113 |
113 |
190 |
150 |
125.5 |
179 |
160 |
135 |
11 |
140 |
107 |
120 |
120 |
6 |
21.5 |
15 |
TF020 |
50 |
24 |
140 |
123 |
123 |
241 |
150 |
165 |
238 |
180 |
143 |
12 |
144 |
122 |
150 |
- |
8 |
27 |
18 |
TF030 |
60 |
28 |
230 |
150 |
150 |
300 |
270 |
191 |
268 |
245 |
190 |
14 |
188 |
150 |
160 |
- |
8 |
31 |
25 |
TF050 |
60 |
28 |
230 |
150 |
150 |
300 |
270 |
191 |
268 |
245 |
190 |
14 |
188 |
150 |
160 |
- |
8 |
31 |
25 |
TF100 |
70 |
38 |
250 |
200 |
200 |
365 |
290 |
201 |
319 |
315 |
245 |
18 |
- |
192 |
194 |
- |
10 |
41 |
30 |
