F同軸齒輪減速機

j

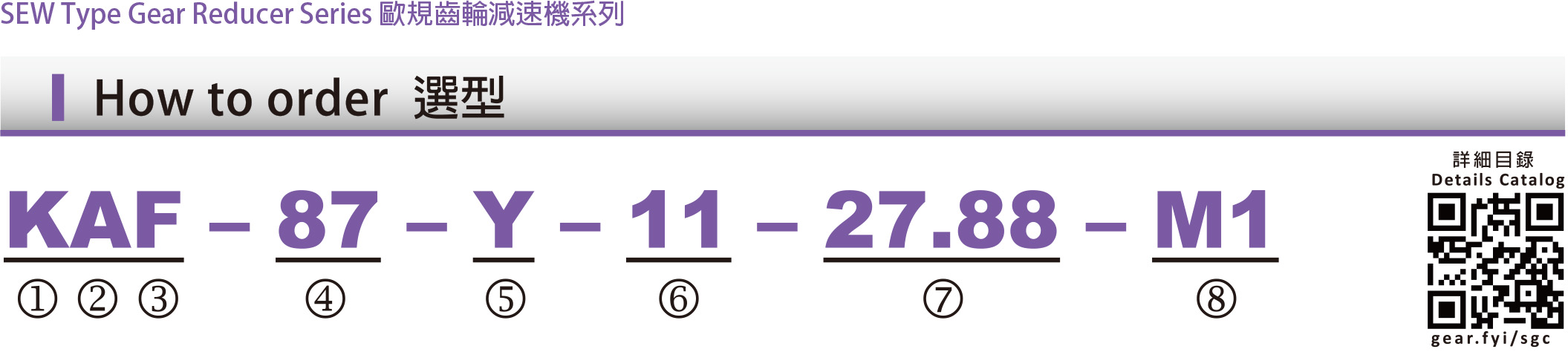

Model型式

K:Helical-Bevel Gear Reducer Series

S:Helical-Worm Gear Reducer Series

R:Helical Gear Reducer Series

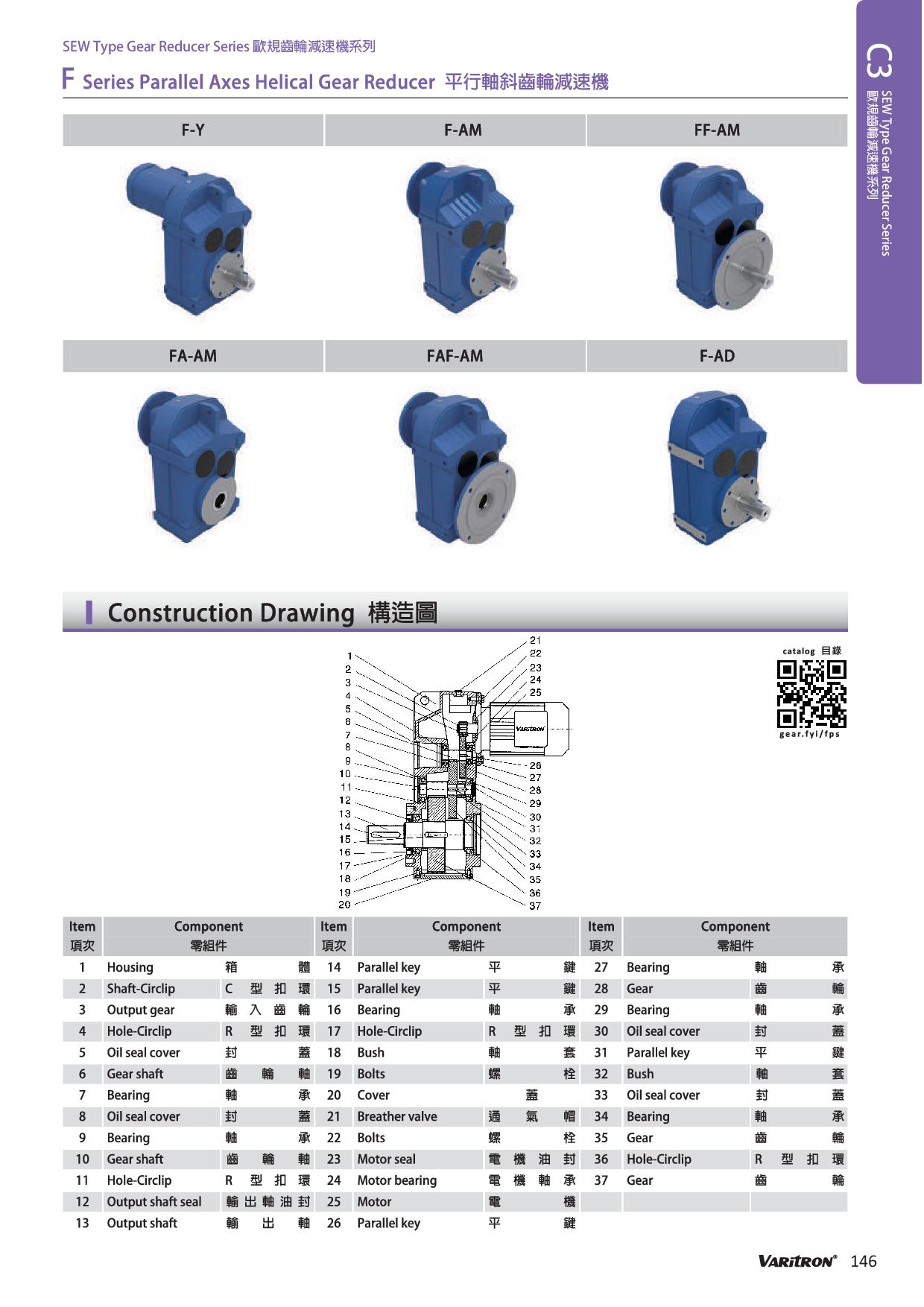

F:Parallel Axes Helical Gear Reducer Series

斜齒輪-傘齒輪減速機

斜齒輪-蝸輪減速機

斜齒輪減速機

平行軸斜齒輪減速機

k

Shaft Type 軸心型式

Empty無記號：Solid shaft

A: Hollow Shaft

M: Extended Bearing Housing

實心軸

中空軸

附加軸承座

l

Output Type 輸出型式

F: Flange Mount

Z: Small Flange Mount

B: Foot Mount

T: Torque Arm

法蘭安裝

小法蘭安裝

腳座安裝

扭力臂安裝

m

Frame Size 型號

K series: 37,47,57,67,77,87,97,107,127,157,167,187

S Series: 37,47,57,67,77,87,97

R Series: 17,27,37,47,57,67,77,87,97,107,137,147,167

F Series: 37,47,57,67,77,87,97,107,127,157

n

Input Type 入力型式

Y: Motor

AM: IEC Adaptor

AD: Solid Shaft

馬達

馬達法蘭

實心軸

o

Input Power 馬力 (kW4P)

0.2,0.4,0.75,1.5,2.2,4,5.5,7.5,11,…

‡

Ratio減速比

Refer To Performance Table請參考性能表

q

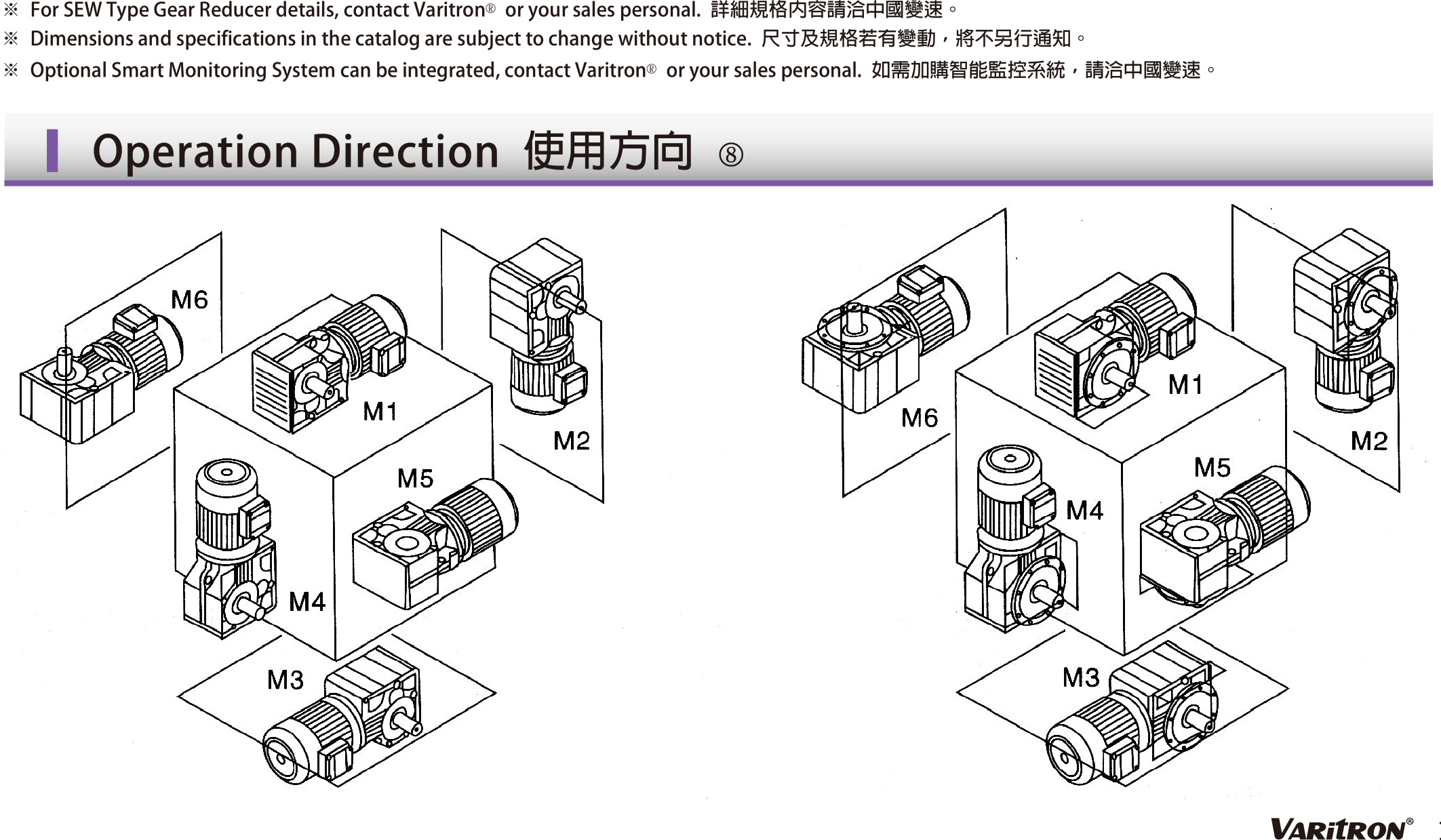

Operation Direction

使用方向

M1(Standard標準),M2,M3,M4,M5,M6
