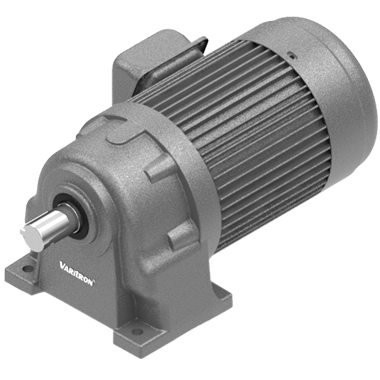

Vatidel GH Helical Gear Inline Gearmotor foot mounting with High Quality alloy steel machined and carbonized with precision tooth profile.
Designation
j |
Model |
GH:Foot Mount Helical Gearmotor GHM: Foot Mount Helical Gear Reducer with Adaptor GHD:Foot Mount Helical Gear Reducer with Input Shaft GV:Flange Mount Helical Gearmotor GVM:Flange Mount Helical Gear Reducer with Adaptor GVD:Flange Mount Helical Gear Reducer with Input Shaft GVV:Helical Gear Motor Agitator |
|
|
k |
Frame Size |
GH18, GH22, GH28, GH32, GH40, GH50…Refer to each model.請參考各形式頁面 |
||
l |
Motor Power (W) |
75,100,200,400,550,750,1500,2200,3700 |
||
m |
Ratio |
Refer toPerformance Chart page 128~129. |
||
n |
Suffix (Optional) |
Empty if non B:With Brake BC: With Brake and Clutch DC:DC motor F: External Fan |
W:Outdoor AVM: Speed Variator AV:Inverter Motor EP:IE3 Premium Efficiency S:Special |
|
o |
Voltage電壓 |
A: 1-Phase 110/220V, 50/60Hz |
S1:3-Phase220/380V, 50/60Hz |
|
S2: 3-Phase 200-220/400-440V, 50/60Hz S4: Others |
||||
S3: 3-Phase 230-240/460-480V, 50/60Hz |
||||
|
Terminal Box Direction 電器盒方向 |
T1 (Standard), T2, T3, T4 |
