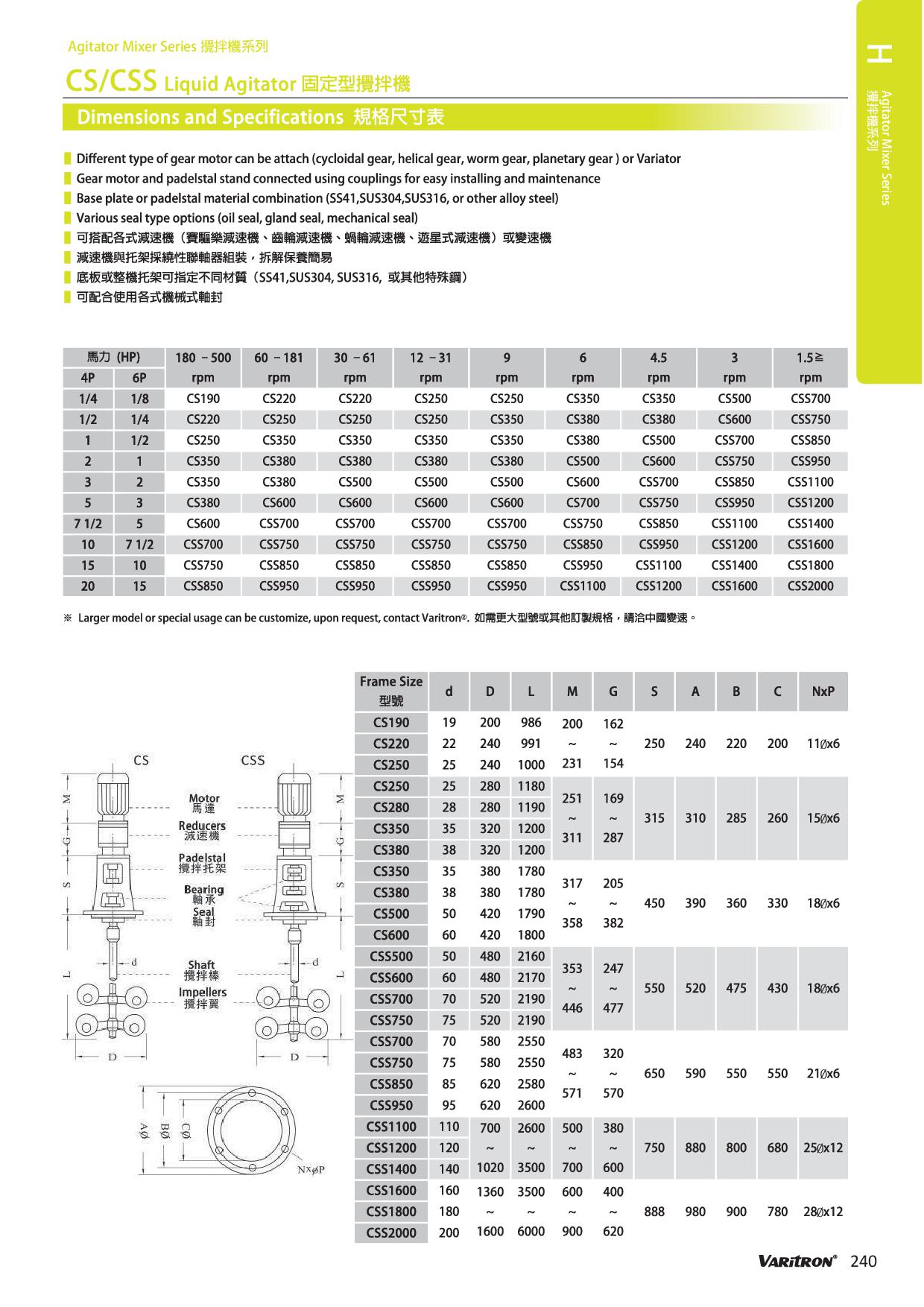

Features
▌Different type of gear motor can be attach (cycloidal gear, helical gear, worm gear, planetary gear ) or Variator
▌Gear motor and padelstal stand connected using couplings for easy installing and maintenance
▌Base plate or padelstal material combination (SS41,SUS304,SUS316, or other alloy steel)
▌Various seal type options (oil seal, gland seal, mechanical seal)

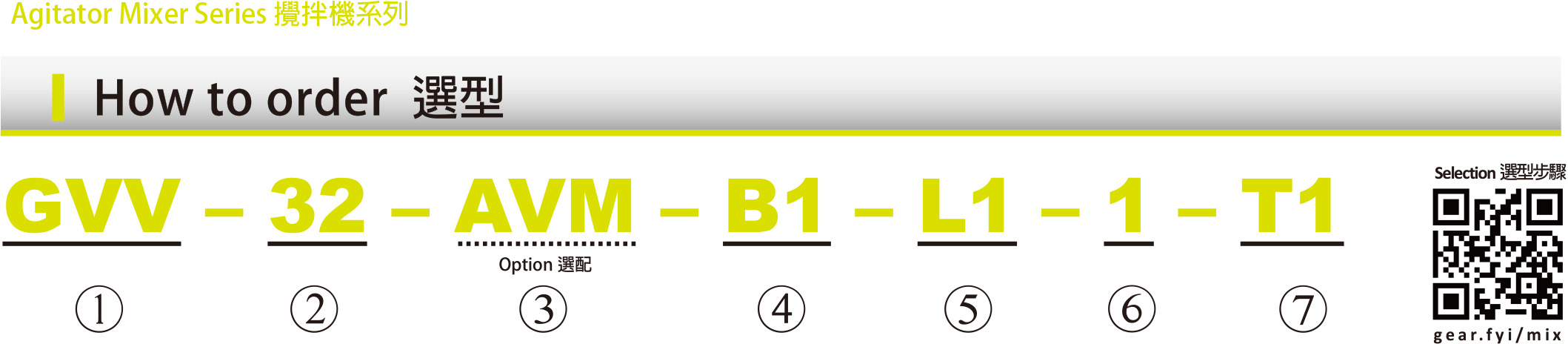

Designation
j |
Model型式 |
HHM:Portable Mixer LCV: Submerge Mixer GVV:Compact Design Helical Gear Agitator CS:Single Layer Anchor Type liquid Agitator CSS:Double Layer Anchor Type liquid Agitator HMB:Liftable High Speed Mixer SCB: Bridge Type High Speed Emulsify Mixer SC: Flange Type High Speed Emulsify Mixer |
可搬式攪拌機 水中攪拌機 固定型齒輪攪拌機 單層固定型攪拌機 雙層固定型攪拌機 升降高速攪拌機 架橋型高速乳化機 法蘭型高速乳化機 |
||
k |
Frame Size 型號 |
Refer to each model 參考各型號 |
|||
l |
Suffix特殊 (Option選配) |

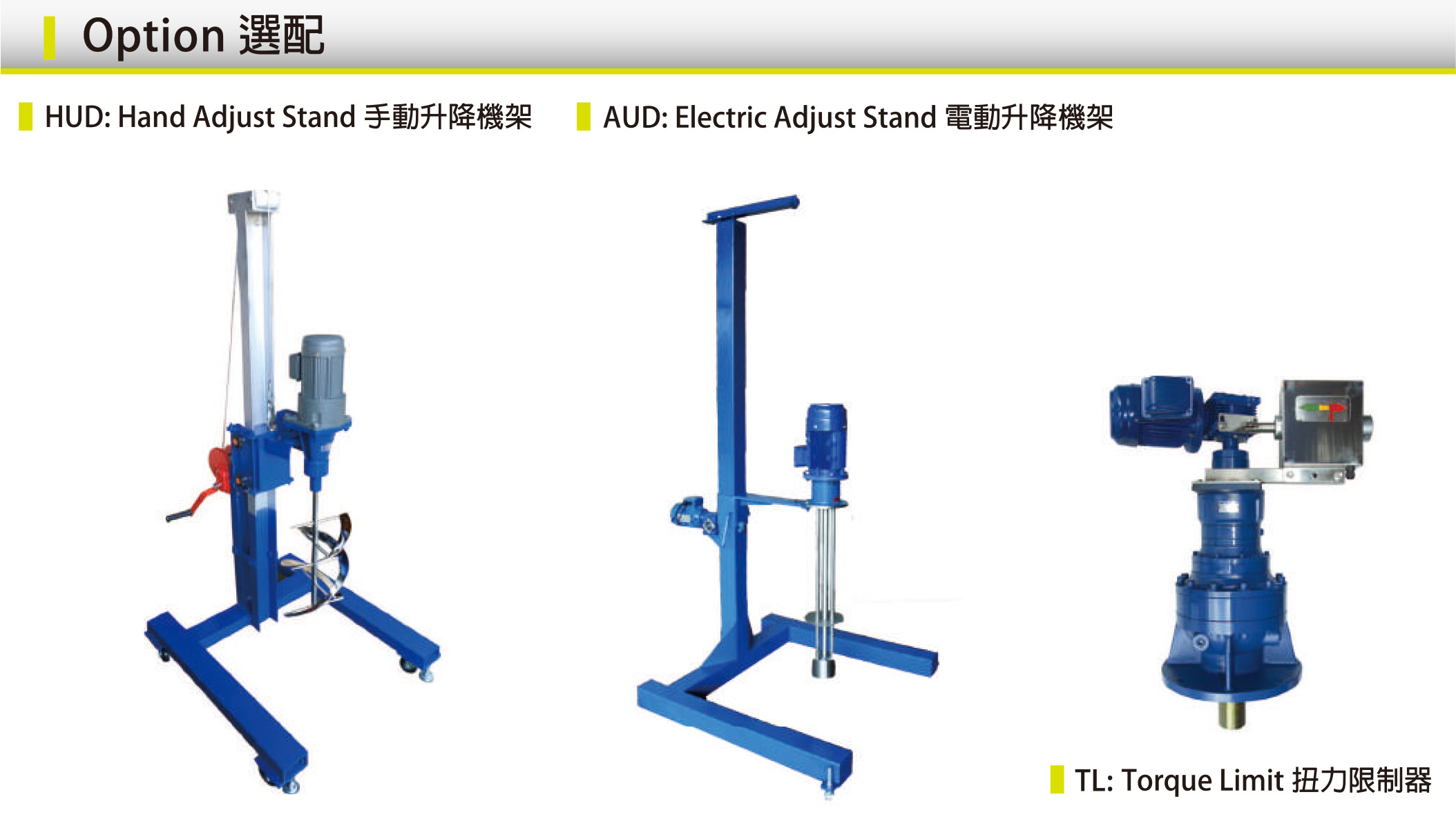

HUD: Hand Adjust Stand手動升降機架 AUD: Electric Adjust Stand電動升降機架 SA: Speed Adjust Control調速器 T3: T3 Explosion Proof T3防爆 T4: T4 Explosion Proof T4防爆 TL: Torque Limit扭力限制器 |
VM: Cycloidal Drive賽驅樂減速機 WG: Worm Gear Reducer 蝸輪減速機 ADV: Helical Gear Reducer齒輪減速機 VF: Planetary 遊星式減速機 AVM: Variator 變速機 |
||
m |
Shaft Seal 軸封 |
L1,L2,G1,G2,… Refer to Page 235參考第235頁 |
|||
n |
Voltage電壓 |
B1:220/380V 50Hz B2:220/380V 60Hz |
C1: 220/440V 50Hz C2:220/440V 60Hz D: Others 其他 |
||
o |
Impellers攪拌翼 |
1,2,3,4,… Refer to Page 236參考第236頁 |
|||
|
Install Method 設置方式 |
T1: Center 中心插浸 T2: Eccentric 偏心插浸 |
T3: Title Eccentric 偏心斜插 B1: Tank Side 桶槽側 |
